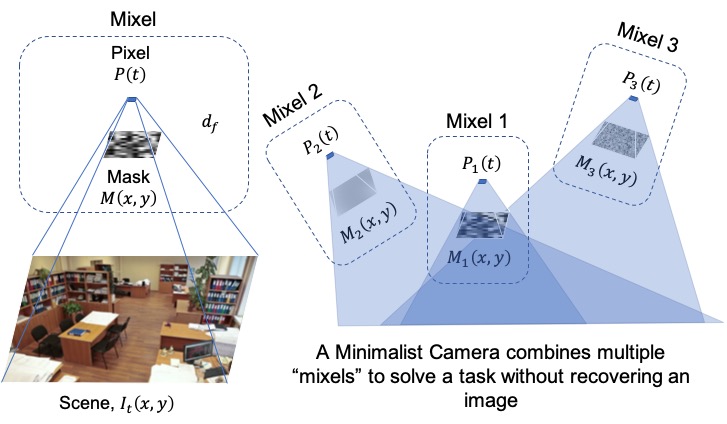

The Minimalist Camera takes a step toward answering the question: what is the minimum number of pixels needed to retrieve information relevant to a task? We provide a design framework to answer this question using the camera architecture inspired from a Single Pixel Camera. A ‘mixel’ (masked pixel) is the smallest unit of a Minimalist Camera. A mixel, as shown on the left, is a pixel that measures a brightness of P(t) at time t by aggregating light incident through the static mask, M(x,y) placed at a distance of d_f. We design the Minimalist Camera (MinCam) by combining multiple mixels. Two main design questions are addressed to design a MinCam: 1) What masks are useful to solve a given task? 2) Can we solve the task using the minimum number of mixels.

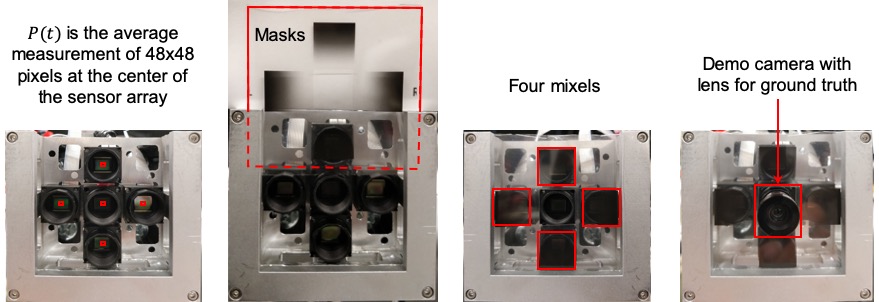

We build a hardware prototype for our proposed MinCam design. Each camera is equivalent to a Mixel and gives one measurement. Figure (a) shows the grid of 48x48 pixels at the center of a camera’s sensor array. This grid is averaged to obtain one 12-bit mixel measurement, P(t). The mask design for four outer mixels is slid into the slot as shown in (b). (c) Four outer cameras become mixels after the mask is placed. (d) An example of a mincam prototype with four mixels and a center camera with lens to capture ground truth.

1D intrusion detection at boundary, y = y0 can be detected using a MinCam with two mixels. Two masks designed as shown in (a) for the two mixels are used to detect and locate intrusion. As shown in (b), the intruding object changes the initial intensity, I_{t=0}(x, y0) by the disturbance, D(x, y0). We recover the centroid of this disturbance, \bar{x}.

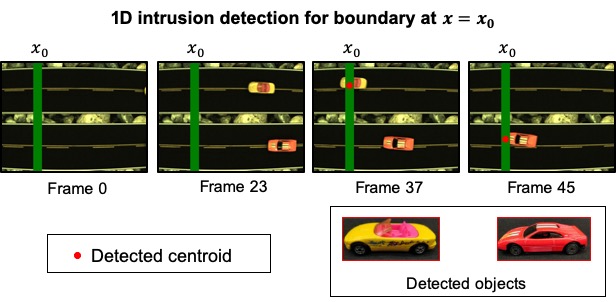

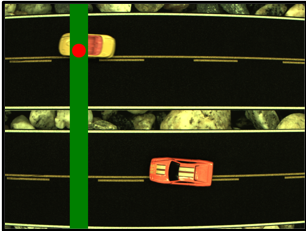

Results of the physical experiment conducted using two toy cars for demonstrating the application. The cars crossing the finish line boundary at x = x0 are detected and located at the red dot for the position of intrusion. The correct position is predicted with a maximum error rate of 11.42% and an average error rate of 4.83%. A complete video of the car race is provided in the supplementary material for proper analysis of results.

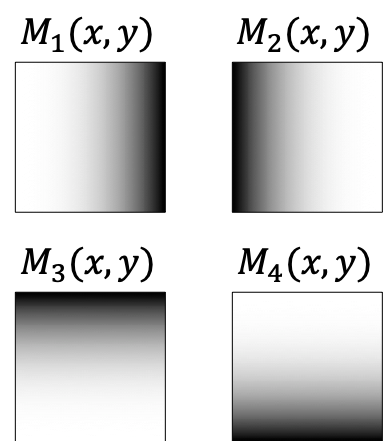

An object's approximate centroid of intensity can be tracked by using a minimalist camera with four mixels whose masks are shown here.

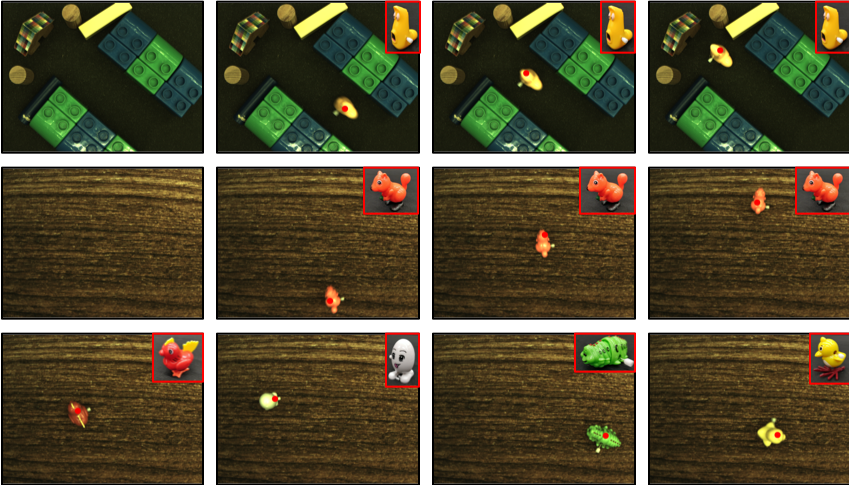

We use wind-up toys as moving objects against a static background to conduct experiments for Naive Object Tracking. Close-up shots of the tracked objects are shown in the top right corner of each image. The predicted position (red dot) is correctly identified within a maximum error rate of 6.78% with an average error rate of 2.82%. The complete video results for all toys are provided in the supplementary material.

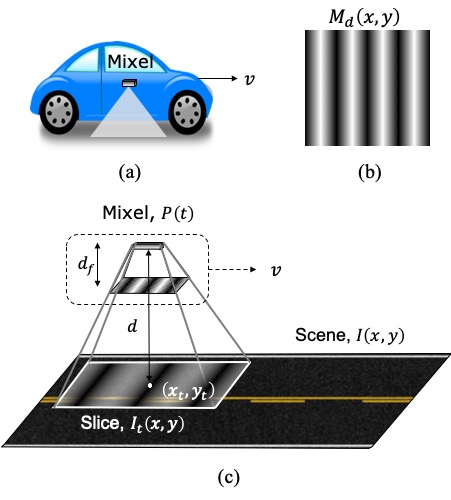

Here we show that the speed of a moving vehicale can be estimated using a MinCam with one mixel. We design the mixel with a sinusoid mask design. As the car moves along the road, the mincam correlates with the road's texture. Since correlation in spatial domain is equivalent to multiplication in Fourier domain, the mincam filters the spatial frequency equivalent to the mask frequency from the road's texture. The frequency of the signal measured by the mixel increases monotonically with the speed of the car and can thus be retrieved from the measured signal.

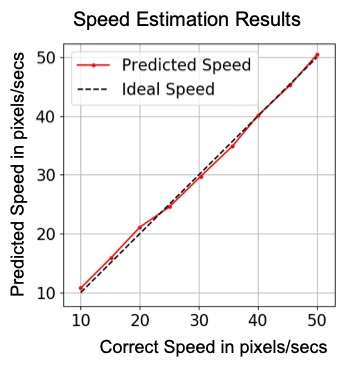

We use the hardware prototype to show the proof-of-concept for speed estimation using a MinCam. A moving road is shown on a TV screen and the MinCam is stationary above the scene. The speed is measured in terms of the pixels travelled by the road scene on the display in one second, as observed by the stationary mixel. The speed predicted from \omega_p is plotted against the correct speed. The prediction is within a maximum error rate of 7.55 % with an average error rate of 2.85%.
